NEEDLE BONDING

NEEDLE BONDING & SYRINGE NEEDLE ASSEMBLY ADHESIVES

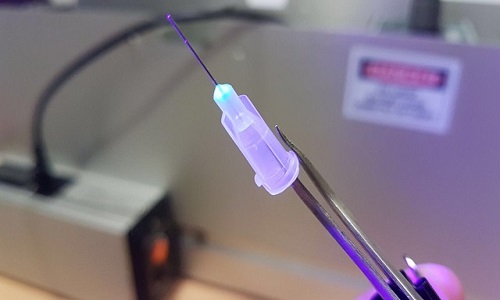

Incure Cyro-Weld™ needle bonders are specially formulated to suit variations in hub-cannula gap sizes for different designs (intra-dermal and subcutaneous injections). Offering speed of cure with low energy LED lamps, its high fluorescing properties for in-line quality inspection on automation lines are much sort after in today’s high volume manufacturing. Cyro-Weld™ 100% solvent-free medical device adhesives are ISO 10993 compliant, and all are formulated to withstand EtO and steam-sterilization with enhanced thermal and moisture resistance. Also available - color change feature for users to distinguish visually full cure of bond areas and bond lines. Specially formulated for high bond strength on many grades of stainless steel, plastics and glass, applications range from infusion sets, hypodermic, pen, thin-walled and biopsy / puncture needles etc.
Advantages of Cyro-WeldTM - Needle Bonding Adhesives

  100% Solids
  UV/Visible Cure In Seconds
  Tack-Free
  Wide Range of Viscosities

Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
Cyro-WeldTM Series Core Products
Product Product Highlights Substrates Color Viscosity Tensile Hardness Elongation
5040F Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Fluoresces for quality inspection. Multi-Substrates
(Plastics)
Slight Yellowish Tint, Fluorescing 80 – 180 cps 3,200 – 6,900 psi D80 - D90 1%
5021F Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Formulated to meet ISO 10993-5. Passes EtO & gamma sterilization. Multi-Substrates
(High Strength Plastics)
Clear, Fluorescing 100 – 200 cps 4,200 – 7,000 psi D68 - D78 82%
5422F Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Meet ISO 10993-5. Passes EtO & gamma sterilization.  Multi-Substrates Clear, Fluorescing 200 – 400 cps 3,700 – 6,900 psi D57 to D67  350%
5422CF Color-change during cure from blue to clear. Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Meet ISO 10993-5. Passes EtO & gamma sterilization. Multi-Substrates Clear, Fluorescing 200 – 400 cps 3,700 – 6,900 psi D57 to D67  350%
Above products are available in other Viscosities versions: T (Thick), VT (Very Thick), G (Gel), S (Special Viscosity)
Package Size: 10 ml syringe / 30 ml syringe / 1 kg Bottle
