MASK
LIGHT CURABLE PEELABLE MASKS FOR SURFACE PROTECTION AND PARTS HANDLING ASSEMBLY

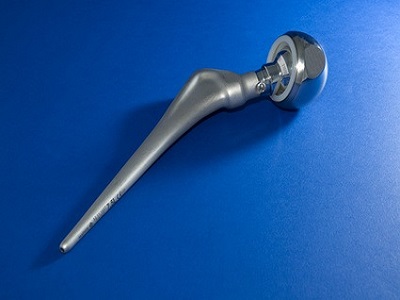

Incure LitemaskTM offers a unique range of temporary UV peelable masks for MRO, electronics and orthopaedic industry. These UV/visible light curable materials’ resilience, strong adhesion and chemical resistance prevents edge lift and yet preserves the integrity of the surface being protected. Simplify your process by eliminating long masking cycles.

Fill in your Masking Application Profile Here


Advantages of LitemaskTM - Peelable Masks

   Apply, Cure and Remove in Seconds!
   Residue Free Removal
   Applied by Coating, Dipping or Spraying
Learn about our Light Curing Systems

C9000/ U8000 UV Light Curing Conveyor Systems
L9000 Compact UV LED Spot Curing Lamp
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
Litemask™ Series Core Products
Product Product Highlights Substrates Color Viscosity Tensile (psi) Hardness Elongation
4201 Aerospace Grade. Cures with UV / Visible / Heat or activator (Actif 398). Very low viscosity, high strength metal / glass / ceramics masking material. Low linear shrinkage, good temperature and moisture resistance. High Performance
Metal/Glass/Ceramics
Slight Tint 130 cps 7,400 – 10,000 D75 – D85 4%
4272 Aerospace Grade. Cures with UV / Visible / Heat or activator (Actif 398). Very low viscosity, high strength metal / glass / ceramics masking material. Low linear shrinkage, good temperature and moisture resistance. High Performance
Metal/Glass/Ceramics
Slight Tint 400 cps 9,700 – 10,900 D77 – D87 4%
4153 Ultra-clear, low viscosity UV / Visible Light / LED / Activator / Heat-curing, high strength metal-glass mask for protection of surfaces during blasting. Remove by burn-off. Tack-free, used in jewelry industry. High Performance
Metal/Glass/Ceramics
Slightly Translucent 700 cps 7,000 – 8,400 D80 – D90 33%
3148 Ultra-clean and tough. Very effective protection against chemical stains and scratch marks. No residue or contamination after removal. Ideal for protection of critical surfaces during manufacturing processes.  Good Strength
Metal/Glass/Ceramics
 Dark Blue 6,000 cps 4,600 – 5,300 D49 – D59 250%
1123G Very high viscosity and clear peel-able mask for temporary protection of components. Protection against soldering and sand-blasting processes. Remove by soaking in hot water. Highly elongation and very tough material. High Strength,
Multi-Substrates
 Clear Gel 5,000 – 6,900 D67 – D77 300%

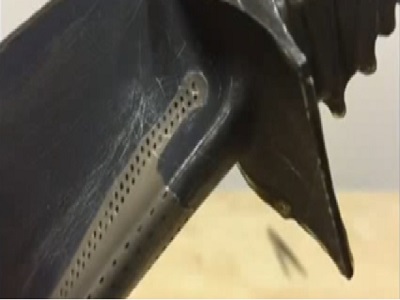

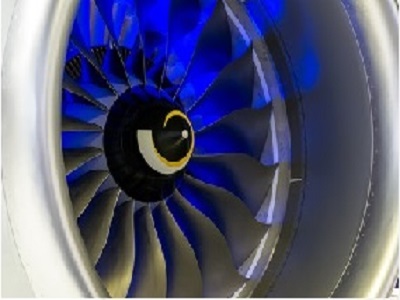

4139 Cures with UV / Visible / Heat or Actif 398. Very good adhesion to metals and glass. Used in aerospace industry for the effective protection of turbine blades against chemicals during cleaning. High Performance
Metal/Glass/Ceramics
 Clear 24,000 cps 9,800 – 16,000 D75 – D85 55%
4139G Cures with UV / Visible / Heat or Actif 398. Very good adhesion to metals and glass. Used in aerospace industry for the effective protection of turbine blades against chemicals during cleaning.  High Performance
Metal/Glass/Ceramics
 Clear >1,000,000 cps 9,800 – 16,000 D75 – D85 55%
8177G Gel form, ultra-clean peel-able high temp mask for electronics and aerospace industries. Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes. Peelable  Clear Blue Gel 3,600 A15 – A25 184%
8114VT Very high viscosity, ultra-clean peel-able high temp mask for electronics and aerospace industries.  Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes. Peelable Clear Transparent 25,000 cps 100-1,600 D30– D40 26%
8188G Gel form, ultra-clean peel-able high temp mask for electronics and aerospace industries. Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes. Peelable Clear Blue >1,000,000 cps 4,500 D15 – D25 90%
Above products are available in thicker versions: T (Thick), VT (Very Thick), G (Gel)
Package Size: 10 ml syringe / 30 ml syringe / 30 ml squeeze bottle / 100 ml squeeze bottle / 250 ml squeeze bottle / 1 kg Bottle / 1 Gallon Pail / 2 Gallon Pail / 5 Gallon Pail
APPLICATION:

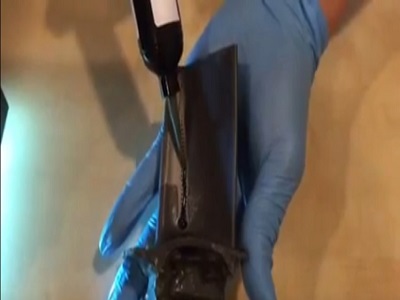

1. Apply at locations that needs to be protected

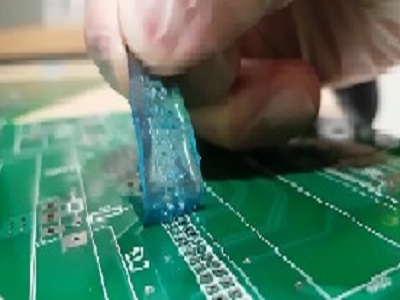

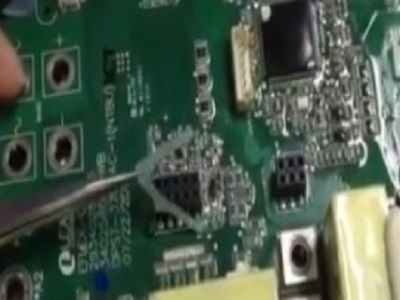

Removal of Litemask from PCB board.

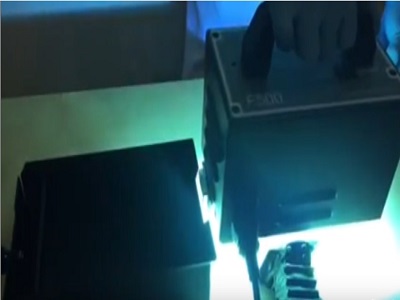

2. Cure Litemask with F500 UV lamp
Click image to watch removal of LitemaskTM

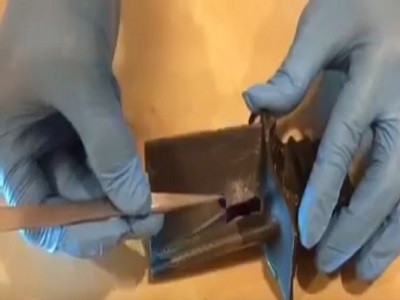

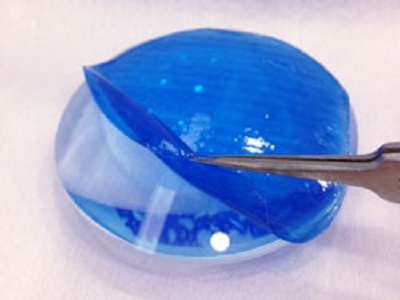

3. Peel off easily. No residue.
Click image to watch demostration.
