MEDICAL
UV LIGHT CURABLE ADHESIVES OR MEDICAL DEVICE ASSEMBLY MANUFACTURING ASSEMBLY

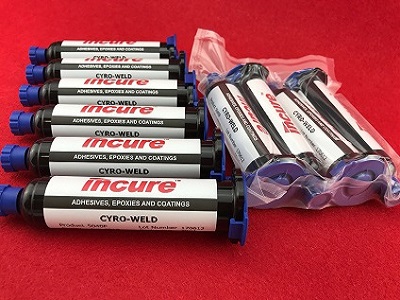

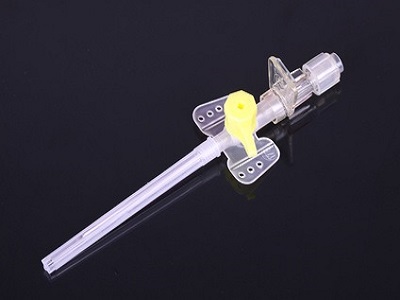

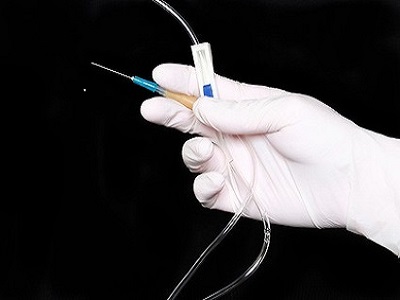

Incure offers a wide range of UV/Visible/LED light-curing adhesives for medical disposables and medical device assemblies. Incure Cyro-Weld™ Series are formulated to provide bonding, coating, sealing, potting and encapsulation of devices such as disposable needles and syringes, face-masks, tube-sets, catheters, reservoirs and housings, oxygenators, respiratory and many other medical disposable devices.

Incure continues invest in research and development of advanced formulations for continual improvements in properties for critical applications. Unique properties include high precision active alignment, low surface energy plastics, ultra-low shrinkage, ultra-fast curing, shadowed areas in UV curing, fluorescing and color-change, low-energy curing, sleek surfaces with extra-ordinary bonding strengths.

All Cyro-Weld™ products are designed to withstand different test requirements, such as thermal cycling under vibration or environmental exposure, EtO, gamma and E-beam sterilisation. Formulated to pass the medical industry’s most comprehensive USP Class IV and ISO 10993 biocompatibility standards.

Fill in your Medical Application Profile Here




Advantages of OptikTM - Optical Adhesives

  100% Solids
  UV/Visible Cure In Seconds
  One Component, No Mixing

Learn about our Light Curing Systems


C9000/ U8000 UV Light Curing Conveyor Systems
L9000 Compact UV LED Spot Curing Lamp
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
Cyro-WeldTM Series Core Products
Product Product Highlights Substrates Color Viscosity Tensile Hardness Elongation
5040F Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Fluoresces for quality inspection. Multi-Substrates
(Plastics)
Slight Yellowish Tint, Fluorescing 80 – 180 cps 3,200 – 6,900 psi D80 - D90 1%
5021F Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Formulated to meet ISO 10993-5. Passes EtO & gamma sterilization. Multi-Substrates
(High Strength Plastics)
Clear 100 – 200 cps 4,200 – 7,000 psi D68 - D78 82%
5291 Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Formulated to meet ISO 10993-5. Passes EtO & gamma sterilization. Multi-Substrates
(High Strength Plastics)
Slight Tint 150 – 300 cps 4,200 – 7,100 psi D72 - D82 92%
5942 Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Multi-Substrates
(High Strength Plastics)
Clear 200 – 400 cps 5,000 – 6,800 psi D63 – D73 6%
5942F Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Fluoresces for quality inspection.  Multi-Substrates
(High Strength Plastics)
Clear 200 – 400 cps 4,500 – 6,800 psi D63 – D73 6%
5952 Low viscosity, acid-free, multi-substrate / plastic medical bonder. Good bonding strength on multiple substrates such as metals, glass and FR4 materials on a single application. Multi-Substrates
(High Strength Plastics)
Clear 300 – 600 cps 4,300 – 7,000 psi D60 – D70 326%
5454 Medium viscosity, high-strength medical grade PC / TPE bonder with enhanced temperature and moisture resistance. Formulated to meet ISO 10993-5. Multi-Substrates
(Plastics)
Slight Yellowish Tint, Clear 1,000 – 2,000 cps 1,600 – 6,500 psi D25 – D35 230%
5414 Low viscosity, acid-free FIPG / CIPG gasket and sealant for medical devices. Very low linear shrinkage. Ideal for medical optics positioning / alignment application. Adhere well to glass / metals / ceramics / plastics.  Multi-Substrates
(High Strength Plastics)
Slight Yellowish Tint, Clear 2,000 – 3,500 cps 3,300 – 7,100 psi D68 - D78 73%
5005 High-strength multi-substrate bonder. For medical devices with demanding applications. Offers adaptability, strength and rapid cure. Tough-yet-flexible material with high reliability. Passes EtO and gamma sterilisation. High Strength Plastics Clear
Transparent
3,500 – 5,500 cps 3,200 – 6,900 psi D51 – D61 812%
5302 Medical grade, low viscosity multi-substrate bonder.  Good passive vibration isolation capability and extremely low shrinkage.  Suitable for use as a sealant and gasket material. Multi-Substrates  Clear 200– 500 cps 3,100 – 3,800 psi D15– D25 812%
5303FT Manufacture of gel-pads for silicon wafers and laminates. High-tack feel on the surface. Low water absorption and shrinkage properties. Transparent and fluorescing to aid inspection. 100% solids, contains no volatiles. Multi-Substrates
(High Strength Plastics)
Transparent, Fluorescing 5,000 – 9,000 cps 1,000 – 2,200 psi A7 – A17 737%
Above products are available in other Viscosities versions: T (Thick), VT (Very Thick), G (Gel), S (Special Viscosity)
Package Size: 10 ml syringe / 30 ml syringe / 1 kg Bottle
