F500

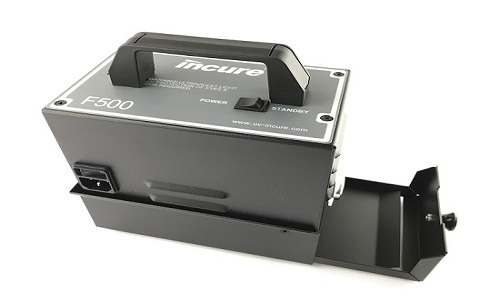

F500 PORTABLE UV CURING LAMP (FLOOD 5"x 3")

The F500 is a portable UV curing lamp that can handle a variety of UV curing applications due to its versatility. With an effective curing area of 5" x 3", it is ideal for batch or conveyor mounted curing of small parts. Weighing-in at a mere 6 pounds, the system is also perfect for applications where frequent transportation is involved. The unit features a lightweight removable head, which serves as a self-contained handheld curing lamp during operation. The bottom half of the unit is an accessories carrying case for the headrest, UV glasses, power cord and adhesives, and is not required during operation. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. Simple yet high-tech design, the F500 is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
Features of F500TM - Portable UV Lamp

  Removable Head Lamp
  Lamp Power Regulation
  Standby Mode
  Versatile
  Forced Air Cooling


Learn about our Light Curing Systems

C9000/ U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
F500 Flood Lamp
  Configuration Specifications
  Type of Lamp ARC Focused

  Peak Intensity,

  Distance from Lamp Base,

  (mW/cm2)

 @1.0"

 @1.5"

 @2.0"

 @2.5"

UVA:535, UVV:480

UVA:500, UVV:450

UVA:465, UVV:420

UVA:435, UVV:390

  Intensity Adjustment  NO
  Optional Wavelengths 254, 365
  Working Distance 1"
  Expected Bulb Life >1000 hrs
  Intensity Decay Over Life  45%
  Curing Area  5" x 3"
  Curing Box with Interlock Safety Feature(optional) Hand-Held
  Curing Box Adjustable Heights  1.75", 3.5", 5.25", 7.0", 9.0"
  Temperature Management    Forced Air with Louvers
  Power Input 100-240V 50/60Hz Auto-Ranging
  External Control Port None
  Light Source Dimension
  Power Supply Dimension
  Curing Box Dimension
 8"x 5"x 6"
Integrated Light Source
54"x 14"x 12"
   Ordering Part Number  F500-1A (with UVA Bulb), F500-1C (with UVC Bulb)
 Please click here to refer flood lamp selector guide
