F900P
F900P PROGRAMMABLE UV FLOOD CURING LAMP

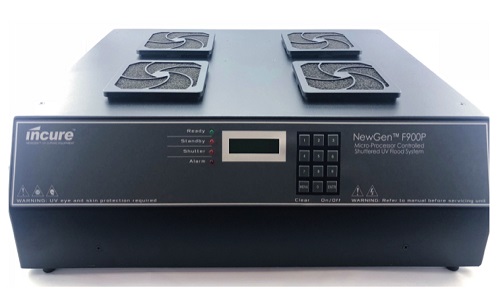

The F900P is a a programmable UV flood curing lamp that can handle a variety of UV curing applications due to its versatility. With an effective curing area of 16" x 12", it is ideal for batch or conveyor mounted curing of small parts. Weighing-in at a mere 6 pounds, the system is also perfect for applications where frequent transportation is involved. The unit features a lightweight removable head, which serves as a self-contained handheld curing lamp during operation. The bottom half of the unit is an accessories carrying case for the headrest, UV glasses, power cord and adhesives, and is not required during operation. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. Simple yet high-tech design, the F900P is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.


Features of F900PTM - Programmable UV Flood Curing Lamp

  Removable Head Lamp
  Lamp Power Regulation
  Standby Mode
  Versatile
  Forced Air Cooling


Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
F900P Flood Lamp
  Configuration Specifications
  Type of Lamp ARC Flood

  Peak Intensity,

  Distance from Lamp Base,

  (mW/cm2)

 @1.0"

 @1.5"

 @2.0"

 @2.5"

UVA:320, UVV:300

UVA:285, UVV:270

UVA:250, UVV:240

UVA:215, UVV:210

  Intensity Adjustment  YES
  Optional Wavelengths 256, 320, 365
  Working Distance 1.5"-3"
  Expected Bulb Life >2000 hrs
  Intensity Decay Over Life  45%
  Curing Area   16" x 12"
  Curing Box with Interlock Safety Feature(optional)   B201
  Curing Box Adjustable Heights  1.75", 3.5", 5.25", 7.0", 9.0"
  Temperature Management   Forced Air with Louvers
  Power Input   100-240V 50/60Hz Auto-Ranging
  External Control Port LCD Programmable Interactive Panel
  Light Source Dimension
  Power Supply Dimension
  Curing Box Dimension
18"x 23"x 8"
Integrated UV Source
20"x 24"x 14"
   Ordering Part Number    F900P-1A (with UVA Bulb), F900P-1C (with UVC Bulb)
