L1044

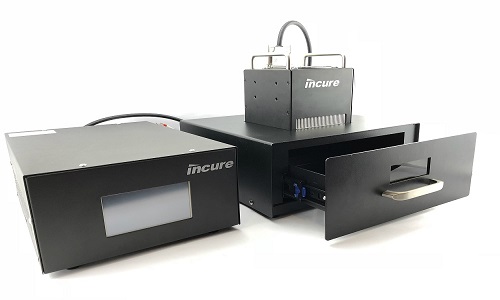

L1044 UV LED FLOOD LAMP

The L1044 (365, 385 or 405 configurations) offers users the benefit of lower cost per joule, made possible with 144 high-power LEDs for curing of Incure UV/Visible light curing adhesives and coatings. With more than 2,200 mW/cm2 of intensity covering 4" x 4" of curing area, it is the highest in it class and is suitable for use as a stand-alone modular unit mounted on UV chambers (for small scale manufacturing) or mounting on Incure C9000 UV Conveyor (for high volume production). LED Controlled provides operation via foot-switch or PLC with programmable curing modes.

Features of L1044TM - High Intensity UV LED Lamp

  Extremely Powerful
  144 High-Power LEDs
  4" x 4" Curing Area
  Compact
  Programmable Curing Modes


Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
F500 Portable UV Curing Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
L1044 UV LED Flood Lamp
   Configuration Specifications
  Type of Lamp LED Flood
  Peak Intensity,   Distance from Lamp Base,   (mW/cm2)

 @1.0"

 @1.5"

 @2.0"

 @2.5"

2,540

2,420

2,370

2,260

  Intensity Adjustment YES
  Optional Wavelengths 365, 395, 405
  Working Distance  1.5"-3"
  Expected Bulb Life >20000 hrs
  Intensity Decay Over Life  20%
  Curing Area    4" x 4"
  Curing Box with Interlock Safety Feature(optional)    B300 or B500 with Adapter Plate
  Curing Box Adjustable Heights 3.5"
  Temperature Management   Forced Air with Louvers
  Power Input   100-240V 50/60Hz Auto-Ranging
  External Control Port LCD Programmable Panel
  Light Source Dimension
  Power Supply Dimension

  Curing Box Dimension

5.1"x 5.1"x 6.3"
 13"x 5.1"x 9"
   Ordering Part Number   L1044-365, L1044-395, L1044-405
