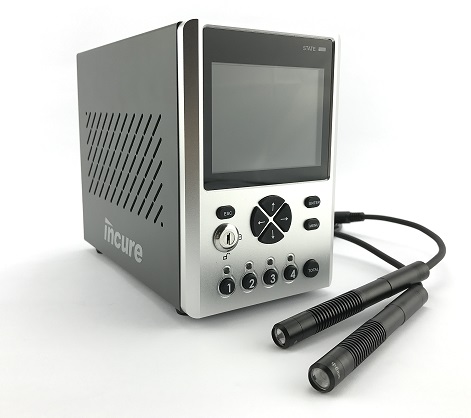

L9000 COMPACT UV LED SPOT CURING LAMP

The L9000 is a High Intensity Compact UV LED Curing Lamp with uniform UV LED energy delivered to work surfaces. Light instantaneously on with no warm up required – Rapid Cure! Up to four UV LED lightguides can be connected to the operating unit whereby the diodes can emit different wavelengths. Each LED can be activated separately. No fuming of cured material caused by excessive radiant power from conventional lamps. Potential for 20,000+ hours from the UV LED light source obviates the need for replacement bulbs.

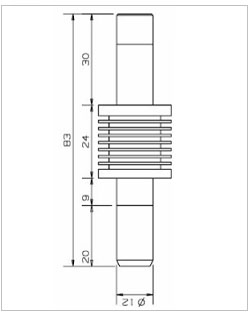

Cool Guide (24mm cube)
Features of L9000TM - UV LED Lamp

  High Intensity
  No Warm Up Required
  Rapid Cure
  Compact
  Connect Up to Four Lightguides


Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyors
F100P / F200P Programmable UV Lamps
F500 Portable UV Curing Lamps
L1000 High Intensity UV LED Flood Lamps
S10 / S20 High Intensity UV Spot Lamps

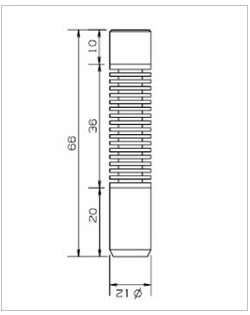

Short Guide (66mm)
L9000 Compact UV LED Spot Curing Lamp
  Specifications
  Model L9000
  Wavelengths 365 375 385 395 405 -
  Lightguide(s) 1 to 4
  Cool Cure, °C 0 to 50
  Lamp Activation, seconds 0.1 to 999.9
  Adjustable Power Output, % 0 – 100
  Interface RS-232
  Input Voltage, VAC 100-240
  Weight, kg Approx. 1.7
  Dimensions, mm 180 x 100 x 140.5
  L9000 – 350nm to 380nm (peak at 365nm)
  Spot Diameter (mm) 3 4 6 8 10 12
  Focal Point (mm) 9 10 17 20 25 30
  Intensity (mW/cm2) 7500 5000 2300 1200 700 450
  Order No. – Cool Guide1 (24mm cube) 290042 290043 290014 290044 290045 290046
  Order No. – Short Guide2 (66mm) 290064 290065 290066 290067 290068 290069
  Order No. – Long Guide2 (118mm) 290070 290071 290072 290073 290074  290075
  L9000 – 390nm to 420nm (peak at 405nm)
  Spot Diameter (mm) 3 4 6 8 10 12
  Order No. – Cool Guide1 (24mm cube) 290058 290059 290060 290061 290062 290063
  Order No. – Short Guide2 (66mm) 290076 290078 290077 290079 290080 290081
  Order No. – Long Guide2 (118mm) 290082 290083 290084 290085 290086 290087
* Please call or email us for wavelengths other than 365nm and 405nm.
1 Cool Guides Uses Fan Cooling - Excellent heat dissipation performance, suitable for continuous radiation/curing.
2 Short and Long Guides Uses Natural Cooling - No vibration, suitable for short radiation/curing.

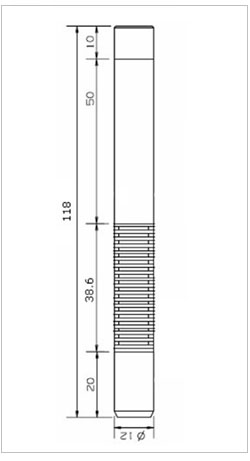

Long Guide (118mm)
