S10

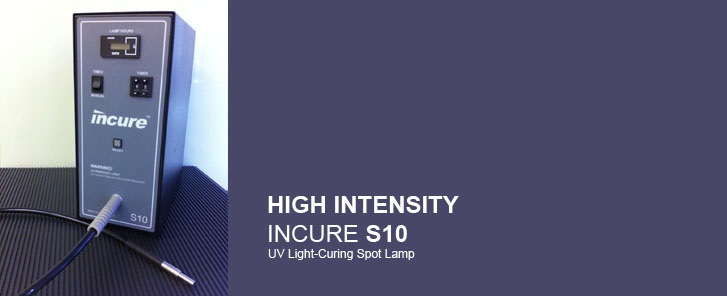

S10 High Intensity UV Light-Curing Spot Lamp

• Wide-Range AC Line Input • Cool Light Output • Lamp Power Regulation • Timer Controlled Shutter

The S10 is a high intensity compact light curing system. This light curing spot lamp is designed with low cost of ownership in mind, with its vertically mounted long-life mercury lamp, separately replaceable elliptical reflector, and filtered input long-life lightguide. The S10’s easy to use exposure time controls and foot pedal activation make operating the unit a snap. The UV system weighs in at less than 7.5 pounds, and its 10 x 5 inch footprint is the smallest in its class.
Configuration S10
Order Number 290002
AC Input Voltage 90 to 265VAC
AC Input Current 2A maximum
Source Input Frequency 47 Hz to 63 Hz
Lamp Power Regulation ± 2%
Fan / Auxiliary Voltage 24V
Lamp Type 100 Watt mercury
Burning Position Vertical
Radiation Flux 12.6 Watts
Warm-up Time 1 to 2 minutes
Cooling time before Restart 2 to 5 minutes typical
Output Intensity (typical) > 10,000 mW/cm2 , 320-390nm
Output Intensity Range 25-100% combined

Lamp Life

1000+ hours typical

Operating Temperature

+10°C to +40°C

+50°F to +104°F

Relative Humidity 30 to 75% operating, 10 to 100% storage
Cooling DC fan, forced air
Over-temp shutdown 65 °C (internal)
L x W x H (inches) 10.73” x 4.95” x 11.62”
Weight (lbs.) 7.5 Pounds
Download: Bulletin for S10 UV Light Curing System (126 KB)
Please click here to refer UV spot lamp selector guide
