HIGH PRECISION DISPENSING NEEDLES
HIGH PRECISION DISPENSING NEEDLES

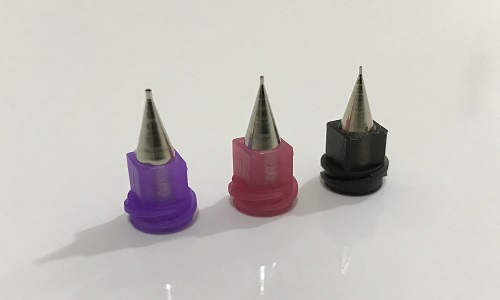

Incure SniperTM High Precision Needles are engineered to dispense a precise amount of fluid onto a work-piece in a precise manner.
These high performance dispense needles are able to achieve the high flow rate required at a low pressure. Suitable for use in sectors
which include, electronics, food, jewelry, medical, printing etc.
Incure SniperTM High Precision Needles are engineered to dispense a precise amount of fluid onto a work-piece in a precise manner.
These high performance dispense needles are able to achieve the high flow rate required at a low pressure. Suitable for use in sectors
which include, electronics, food, jewelry, medical, printing etc.
Features of SniperTM - Precision Dispensing Needles
High Flow Rates
Resists Clogging & Stringing
Improves Fluid Break-Off
Increased Accuracy
Reduces Dispense Pump Pressure
Application Area Includes:
Dispense of UV Adhesives & Sealants
Placement of Small Dots & Lines
Precise Deposition of Adhesive
Deposit of High Surface Tension Fluid Into Wells
Under-Fill of Epoxy in Semiconductor
High Flow Rates Resists Clogging & Stringing Improves Fluid Break-Off Increased Accuracy Reduces Dispense Pump PressureApplication Area Includes:
Dispense of UV Adhesives & Sealants
Placement of Small Dots & Lines
Precise Deposition of Adhesive
Deposit of High Surface Tension Fluid Into Wells
Under-Fill of Epoxy in Semiconductor
Packed Individually
| SniperTM S-Series Core Products | |||||||||
| Product | Gauge | Color | Nominal ID / OD | Material | Coating | ||||
| (inch) | (mm) | 02 | 03 | 00 | 01 | 04 | |||
| S18 | 18 | Pink | 0.041 / 0.049 | 1.039 / 1.240 | Phosphor Bronze | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| S19 | 19 | Orange | 0.034 / 0.042 | 0.859 / 1.059 | Phosphor Bronze | N.A. | No Coating | Electroless Nickel | Nickel PTFE |
| S20 | 20 | Green | 0.027 / 0.035 | 0.681 / 0.879 | Phosphor Bronze | N.A. | No Coating | Electroless Nickel | Nickel PTFE |
| S21 | 21 | Light Blue | 0.024 / 0.032 | 0.610 / 0.810 | Phosphor Bronze | N.A. | No Coating | Electroless Nickel | Nickel PTFE |
| S23 | 23 | Purple | 0.022 / 0.025 | 0.564 / 0.635 | Phosphor Bronze | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| S25 | 25 | White | 0.017 / 0.020 | 0.437 / 0.508 | Phosphor Bronze | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| S27 | 27 | Red | 0.013 / 0.016 | 0.335 / 0.406 | Phosphor Bronze | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| S30 | 30 | Black | 0.009 / 0.012 | 0.234 / 0.305 | Phosphor Bronze | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| SniperTM M-Series Core Products | |||||||||
| Product | Gauge | Color | Nominal ID / OD | Material | Coating | ||||
| (inch) | (mm) | 02 | 03 | 00 | 01 | 04 | |||
| S06 | - | Blue | 0.006 / 0.010 | 0.159 / 0.244 | N.A. | Nickel Silver | No Coating | Electroless Nickel | Nickel PTFE |
| S04 | - | Peach | 0.004 / 0.008 | 0.108 / 0.208 | N.A. | Nickel Silver | No Coating | N.A. | Nickel PTFE |
| S02 | - | Yellow | 0.002 / 0.007 | 0.057 / 0.169 | N.A. | Nickel Silver | No Coating | N.A. | N.A. |
| Ordering Part No.: S18-Material-Coating (eg. S18-02-01 for Gauge 18 with Phosphor Bronze Material and Electroless Nickel Coating | |||||||||
