F500

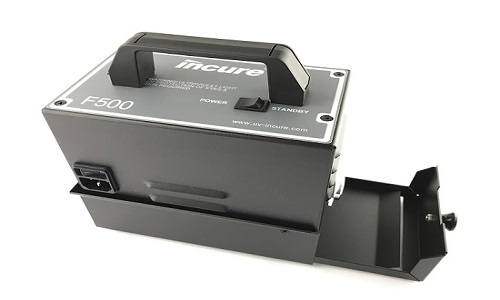

F500 PORTABLE UV CURING LAMP (FLOOD 5"x 3")
The F500 is a portable UV curing lamp that can handle a variety of UV curing applications due to its versatility. With an effective curing area of 5" x 3", it is ideal for batch or conveyor mounted curing of small parts. Weighing-in at a mere 6 pounds, the system is also perfect for applications where frequent transportation is involved. The unit features a lightweight removable head, which serves as a self-contained handheld curing lamp during operation. The bottom half of the unit is an accessories carrying case for the headrest, UV glasses, power cord and adhesives, and is not required during operation. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. Simple yet high-tech design, the F500 is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
Features of F500TM - Portable UV Lamp
Removable Head Lamp Lamp Power Regulation Standby Mode Versatile Forced Air CoolingLearn about our Light Curing Systems
C9000/ U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps
| F500 Flood Lamp | |||
| Configuration | Specifications | ||
| Type of Lamp | ARC Focused | ||
|
UVA:535, UVV:480 UVA:500, UVV:450 UVA:465, UVV:420 UVA:435, UVV:390 |
||
| Intensity Adjustment | NO | ||
| Optional Wavelengths | 254, 365 | ||
| Working Distance | 1" | ||
| Expected Bulb Life | >1000 hrs | ||
| Intensity Decay Over Life | 45% | ||
| Curing Area | 5" x 3" | ||
| Curing Box with Interlock Safety Feature(optional) | Hand-Held | ||
| Curing Box Adjustable Heights | 1.75", 3.5", 5.25", 7.0", 9.0" | ||
| Temperature Management | Forced Air with Louvers | ||
| Power Input | 100-240V 50/60Hz Auto-Ranging | ||
| External Control Port | None | ||
| Light Source Dimension Power Supply Dimension Curing Box Dimension |
8"x 5"x 6" Integrated Light Source 54"x 14"x 12" |
||
| Ordering Part Number | F500-1A (with UVA Bulb), F500-1C (with UVC Bulb) | ||
| Please click here to refer flood lamp selector guide | |||
