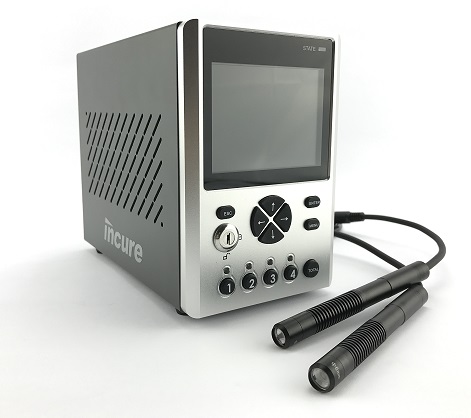

L9000 COMPACT UV LED SPOT CURING LAMP

The L9000 is a High Intensity Compact UV LED Curing Lamp with uniform UV LED energy delivered to work surfaces. Light instantaneously on with no warm up required – Rapid Cure! Up to four UV LED lightguides can be connected to the operating unit whereby the diodes can emit different wavelengths. Each LED can be activated separately. No fuming of cured material caused by excessive radiant power from conventional lamps. Potential for 20,000+ hours from the UV LED light source obviates the need for replacement bulbs.
Cool Guide (24mm cube)

Features of L9000TM - UV LED Lamp
  High Intensity
  No Warm Up Required
  Rapid Cure
  Compact
  Connect Up to Four Lightguides



Learn about our Light Curing Systems
C9000 / U8000 UV Light Curing Conveyors
F100P / F200P Programmable UV Lamps
F500 Portable UV Curing Lamps
L1000 High Intensity UV LED Flood Lamps
S10 / S20 High Intensity UV Spot Lamps
Short Guide (66mm)
Configuration L9000
Type of Lamp LED Spot
Focal Point(mm) 9 10   17 20  25 30
Spot Diameter@Focal Point(mm) 3 4  6  8  10   12
Intensity@Focal Point UVA(UVV)mW/cm2 7,500  5,000 2,300  1,200  450  223(215)
Type of Guides Cool-Guide (L-83mm, Fan-24mm cube)
Short Guide (L-66mm)
Long Guide (L-118mm)
Number of Guides 1 to 4
Available Wavelenths(Peak)  365nm / 375nm / 385nm / 395nm / 405nm
Expected Bulb Life > 20,000 hrs
Intensity Decay over Life  20%
Maximum Part Cure ø 3 4  6  8  10  12
Intensity Control (10% - 100%) Yes  Yes Yes   Yes Yes  Yes
Power Input Temperature Management 100-240V,50/60Hz, Auto-Ranging Forced Air with DC Fan
External Control Port  LCD Programmable Panel / RS-232
Overall Dimensions  7.1” x 4.0” x 6.5” (1.7kg)

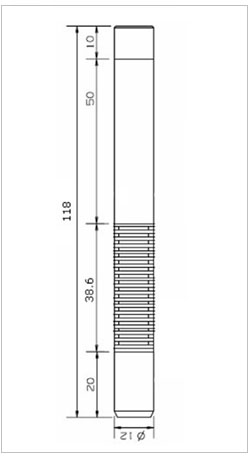

Long Guide (118mm)
