F100P / F200P

F100P / F200P PROGRAMMABLE UV FLOOD CURING LAMPS

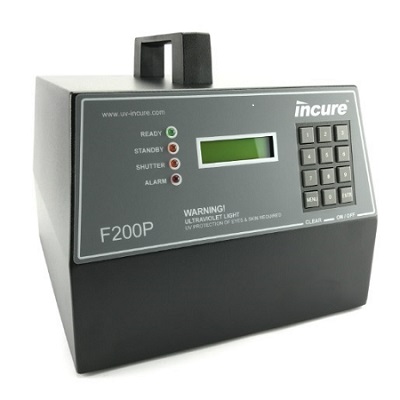

The F200P is a programmable UV flood curing lamp. Incure F200P integrates all system components into a small lamp head which can be easily mounted anywhere on a factory floor, with virtually no cabling or remote control boxes required. Just mount the head, connect the AC line cord, and start timed exposure curing! The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing, and shields the user from UV radiation. The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The long life 600-Watt metal halide type lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed 200mW/cm2 UVA light (320–390nm). The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver.

Features of F100P / F200P^TM - Programmable UV Flood Curing Lamps
  Extremely Versatile
  System Timers
  Lamp Intensity Control
  Standby Mode
  Status Indicators


Learn about our Light Curing Systems
C9000 / U8000 UV Light Curing Conveyor Systems
F500 Portable UV Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps

Configuration	F100P / F200P
Order Number	290007
Input Voltage	90-132/180-265VAC
Input Current, 120/240V	10A/5.0A maximum
Source Input Frequency	47 Hz to 63 Hz
Lamp Power Regulation	± 1%
Fan / Auxiliary Voltage	24V
Lamp Type	600 Watt Metal Halide
Burning Position	Horizontal
Radiation Flux	110 Watts
Warm-up Time	2 minutes
Cooling time before Restart	5 minutes typical
Curing Area	8 x 6’’ minimum
Lamp Life	1000 hours typical
Operating Temperature	+10°C to +40°C +50°F to +104°F
Relative Humidity	30 to 75% operating, 10 to 100% storage
Cooling	Forced air
L x W x H (inches)	11” x 10” x 9”
Weight (lbs.)	15 Pounds
Download: Bulletin for F100P / 200P UV Flood Curing Systems (119 KB)
Please click here to refer UV flood lamp selector guide
