LIGHT CURABLE PEELABLE MASKS FOR SURFACE PROTECTION AND PARTS HANDLING ASSEMBLY

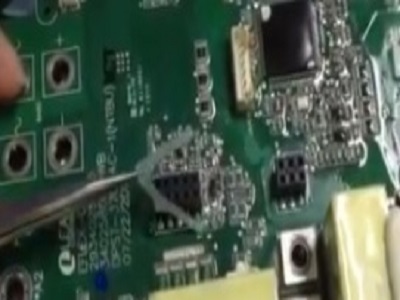

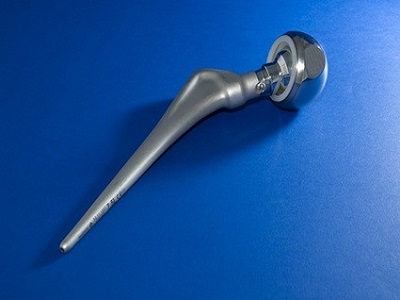

Incure Litemask^TM offers a unique range of temporary UV peelable masks for MRO, electronics and orthopaedic industry. These UV/visible light curable materials’ resilience, strong adhesion and chemical resistance prevents edge lift and yet preserves the integrity of the surface being protected. Simplify your process by eliminating long masking cycles.

Fill in your Masking Application Profile Here

Advantages of Litemask^TM- Peelable Masks

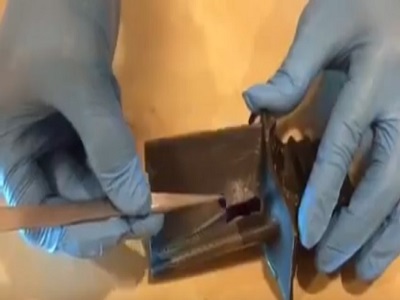

Apply, Cure and Remove in Seconds!

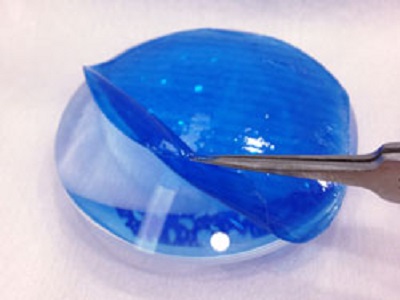

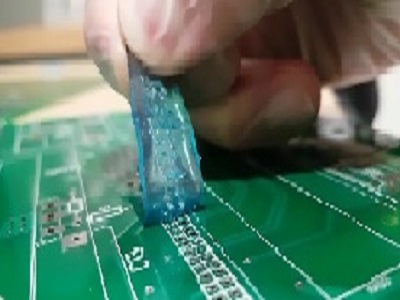

Residue Free Removal

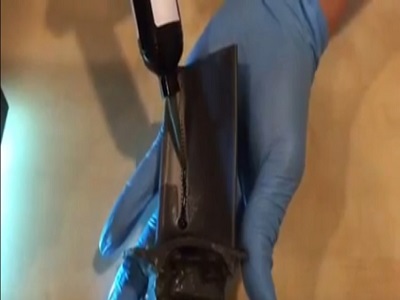

Applied by Coating, Dipping or Spraying

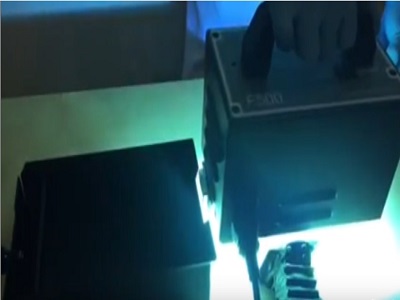

Learn about our Light Curing Systems
C9000/ U8000 UV Light Curing Conveyor Systems
L9000 Compact UV LED Spot Curing Lamp
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps

Litemask^TM Series Core Products
Product	Product Highlights	Substrates	Color	Viscosity	Tensile (psi)	Hardness	Elongation
4201	Aerospace Grade. Cures with UV / Visible / Heat or activator (Actif 398). Very low viscosity, high strength metal / glass / ceramics masking material. Low linear shrinkage, good temperature and moisture resistance.	High Performance Metal/Glass/Ceramics	Slight Tint	130 cP	7,400 – 10,000	D75 – D85	4%
4272	Aerospace Grade. Cures with UV / Visible / Heat or activator (Actif 398). Very low viscosity, high strength metal / glass / ceramics masking material. Low linear shrinkage, good temperature and moisture resistance.	High Performance Metal/Glass/Ceramics	Slight Tint	400 cP	9,700 – 10,900	D77 – D87	4%
4153	Ultra-clear, low viscosity UV / Visible Light / LED / Activator / Heat-curing, high strength metal-glass mask for protection of surfaces during blasting. Remove by burn-off. Tack-free, used in jewelry industry.	High Performance Metal/Glass/Ceramics	Slightly Translucent	700 cP	7,000 – 8,400	D80 – D90	33%
3148	Ultra-clean and tough. Very effective protection against chemical stains and scratch marks. No residue or contamination after removal. Ideal for protection of critical surfaces during manufacturing processes.	Good Strength Metal/Glass/Ceramics	Dark Blue	6,000 cP	4,600 – 5,300	D49 – D59	250%
1123G	Very high viscosity and clear peel-able mask for temporary protection of components. Protection against soldering and sand-blasting processes. Remove by soaking in hot water. Highly elongation and very tough material.	High Strength, Multi-Substrates	Clear	Gel	5,000 – 6,900	D67 – D77	300%

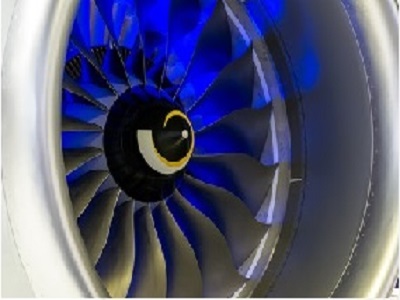

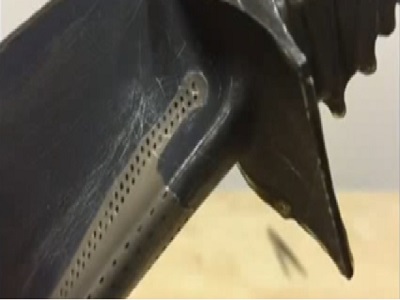

4139	Cures with UV / Visible / Heat or Actif 398. Very good adhesion to metals and glass. Used in aerospace industry for the effective protection of turbine blades against chemicals during cleaning.	High Performance Metal/Glass/Ceramics	Clear	24,000 cP	9,800 – 16,000	D75 – D85	55%
4139G	Cures with UV / Visible / Heat or Actif 398. Very good adhesion to metals and glass. Used in aerospace industry for the effective protection of turbine blades against chemicals during cleaning.	High Performance Metal/Glass/Ceramics	Clear	>1,000,000 cP	9,800 – 16,000	D75 – D85	55%
8177G	Gel form, ultra-clean peel-able high temp mask for electronics and aerospace industries. Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes.	Peelable	Clear Blue	Gel	3,600	A15 – A25	184%
8114VT	Very high viscosity, ultra-clean peel-able high temp mask for electronics and aerospace industries. Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes.	Peelable	Clear Transparent	25,000 cP	100-1,600	D30– D40	26%
8188G	Gel form, ultra-clean peel-able high temp mask for electronics and aerospace industries. Soft, tough and flexible for surface protection against chemical stains and burnt marks during manufacturing processes.	Peelable	Clear Blue	>1,000,000 cP	4,500	D15 – D25	90%
Above products are available in thicker versions: T (Thick), VT (Very Thick), G (Gel)
Package Size: 10 ml syringe / 30 ml syringe / 30 ml squeeze bottle / 100 ml squeeze bottle / 250 ml squeeze bottle / 1 kg Bottle / 1 Gallon Pail / 2 Gallon Pail / 5 Gallon Pail
