LIGHTGUIDES

SINGLE POLE AND MULTI-POLE LIGHTGUIDES FOR UV/VISIBLE SPOT LIGHT CURING SYSTEMS

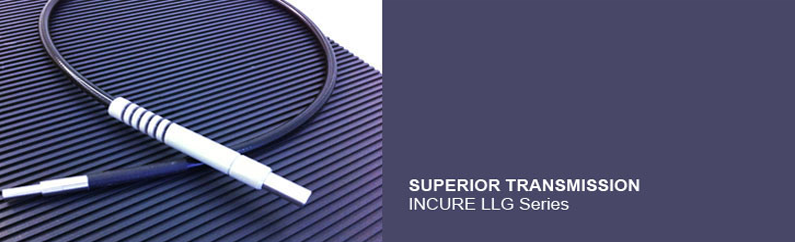

INCURE LLG Series liquid lightguides are suitable for UV adhesives curing and UV fluorescence inspection at lengths of up to 20 m (60 ft.) 300nm. Superior transmission of up to 5W of UV radiation. Suitable for very rugged environments. Recommended light sources: mercury and xenon short arc, tungsten halogen. Temperature range (long term): -5°C to +35°C

Features
• Rugged Construction
• Excellent Throughput
• Superior Transmission
• Wide Range

Learn about our Light Curing Systems
•  C9000 / U8000 UV Light Curing Conveyor Systems
•  F500 Portable UV Curing Lamp
•  L9000 Compact UV LED Spot Curing Lamp
•  S10 / S20 Ultra High Intensity UV/Visible Light-Curing Spot Lamp

Single Pole Lightguides
Product	Pole x Diameter x Length
LG620	1 x 3mm x 500mm
LG622	1 x 3mm x 1000mm
LG623	1 x 3mm x 1500mm
LG624	1 x 3mm x 2000mm
LG601	1 x 5mm x 1000mm
LG602	1 x 5mm x 1500mm
LG625	1 x 5mm x 2000mm
LG626	1 x 5mm x 3000mm
LG627	1 x 8mm x 500mm
LG628	1 x 8mm x 750mm
LG603	1 x 8mm x 1000mm
LG629	1 x 8mm x 1500mm
LG630	1 x 8mm x 2000mm
LG632	1 x 8mm x 3100mm
LG633	1 x 8mm x 6200mm

Bifurcated Pole Lightguides (Two Poles)
Product	Pole x Diameter x Length
LG634 (5mm Rod)	2 x 3mm x 750mm
LG604 (5mm Rod)	2 x 3mm x 1000mm
LG635 (5mm Rod)	2 x 3mm x 1500mm
LG636 (5mm Rod)	2 x 3mm x 2000mm

Trifurcated Lightguides (Three Poles)
Product	Pole x Diameter x Length
LG605 (8mm Rod)	3 x 3mm x 1000mm
LG637 (8mm Rod)	3 x 3mm x 1500mm

Four-Pole Lightguides
Product	Pole x Diameter x Length
LG606 (8mm Rod)	4 x 3mm x 1000mm
LG638 (8mm Rod)	4 x 3mm x 1500mm
LG639 (8mm Rod)	4 x 3mm x 2000mm
