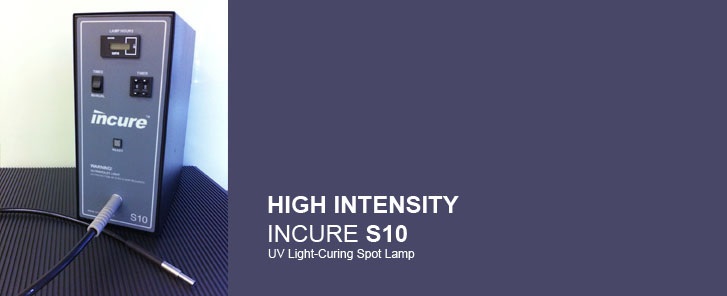

S10 High Intensity UV Light-Curing Spot Lamp
• Wide-Range AC Line Input • Cool Light Output • Lamp Power Regulation • Timer Controlled Shutter
• Wide-Range AC Line Input • Cool Light Output • Lamp Power Regulation • Timer Controlled Shutter
The S10 is a high intensity compact light curing system. This light curing spot lamp is designed with low cost of ownership in mind, with its vertically mounted long-life mercury lamp, separately replaceable elliptical reflector, and filtered input long-life lightguide. The S10’s easy to use exposure time controls and foot pedal activation make operating the unit a snap. The UV system weighs in at less than 7.5 pounds, and its 10 x 5 inch footprint is the smallest in its class.
| Configuration | S10 |
|---|---|
| Order Number | 290002 |
| AC Input Voltage | 90 to 265VAC |
| AC Input Current | 2A maximum |
| Source Input Frequency | 47 Hz to 63 Hz |
| Lamp Power Regulation | ± 2% |
| Fan / Auxiliary Voltage | 24V |
| Lamp Type | 100 Watt mercury |
| Burning Position | Vertical |
| Radiation Flux | 12.6 Watts |
| Warm-up Time | 1 to 2 minutes |
| Cooling time before Restart | 2 to 5 minutes typical |
| Output Intensity (typical) | > 10,000 mW/cm2 , 320-390nm |
| Output Intensity Range | 25-100% combined |
|
Lamp Life |
1000+ hours typical |
| Operating Temperature |
+10°C to +40°C +50°F to +104°F |
| Relative Humidity | 30 to 75% operating, 10 to 100% storage |
| Cooling | DC fan, forced air |
| Over-temp shutdown | 65 °C (internal) |
| L x W x H (inches) | 10.73” x 4.95” x 11.62” |
| Weight (lbs.) | 7.5 Pounds |
