S20

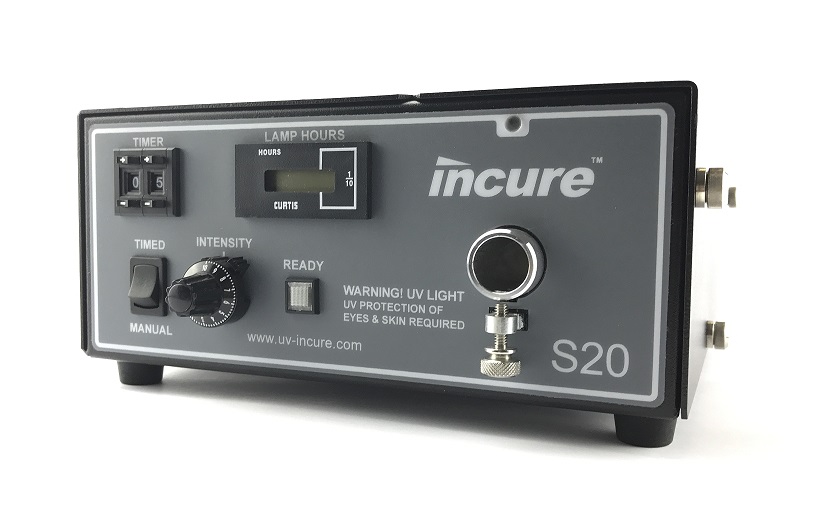

S20 ULTRA HIGH INTENSITY UV LIGHT-CURING SPOT LAMP
The S20 is a new generation ultra high intensity compact UV light curing system that emits up to 23W/cm2 of intensity at the tip of the light-guide (and 27W/cm2 at light source). The adjustable knob allows varying intensities to suit your application needs. With a guaranteed useful life of 2,000 hrs, Incure S20 provides the best value per mW/cm2 in its class. The system weighs a mere 6 pounds, and its 4 x 8.5 x 10.5 inch size is the smallest in its class.
Features of S20TM - High Intensity UV Lamp
Ultra High Intensity Accurate 1 to 99 second Constant Lamp Power Compact Safety InterlockLearn about our Light Curing Systems
C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
F500 Portable UV Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
| Configuration | S20 |
|---|---|
| Order Number | 290029 290028 |
| AC Input Voltage | 100-120VAC ± 10% 200-240VAC ± 10% |
| AC Input Current | 4.7 Amperes 2.5 Amperes |
| Source Input Frequency | 47 Hz to 63 Hz |
| Lamp Power Regulation | ± 1.0% |
| Fan / Auxiliary Voltage | 24V@0.5A |
| Lamp Type | 200 Watt mercury |
| Burning Position | Horizontal |
| Radiation Flux | 275 - 650 nm |
| Warm-up Time | 1 to 2 minutes |
| Cooling time before Restart | 2 to 5 minutes typical |
| Output Intensity (typical) | >21W/cm2 |
| Output Intensity Range | 25-100% combined |
|
Lamp Life |
>2000 hours typical |
| Operating Temperature |
+10°C to +40°C +50°F to +104°F |
| Relative Humidity | 30 to 75% operating, 10 to 100% storage |
| Cooling | Dual DC fans, filtered |
| Over-temp shutdown | 65 °C (internal) |
| L x W x H (inches) | 10.51” x 8.64” x 4.05” |
| Weight (lbs.) | 5.92 Pounds |
