FLOOD LAMP

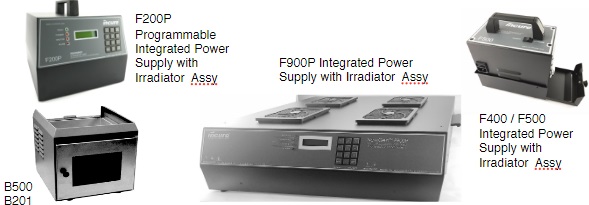

Configuration		F100		F200		F200P		F900P		F400		F500
Type of Lamp		ARC Flood				ARC Flood, Programmable
Intensity in mW/cm2 **(Measured with EIT Power Puck Distance from Lamp Base)**		UVA	UVV	UVA	UVV	UVA	UVV	UVA	UVV	UVA	UVV	UVA	UVV
	@0.5	270	235	360	330	360	330	360	330	455	420	570	505
	@1.0	245	215	320	300	320	300	320	300	415	390	535	480
	@1.5"	215	190	285	270	285	270	285	270	380	360	500	450
	@2.0"	185	165	250	240	250	240	250	240	345	330	465	420
	@2.5"	155	140	215	210	215	210	215	210	310	300	435	390
	@3.0"
	@4.0"
Intensity Adjustment		No				Yes				No
Available Wavelengths		256, 320, 365
Working Distance		1.5” - 3”								1” - 3”		1” (Optimum)
Expected Bulb Life*		> 2,000 hrs
Intensity Decay over Life		45%
Static Uniformity @ 2.0”		0.78
Dynamic Uniformity @ 3.0”		0.90
Curing Area		6” x 8”						12” X 16”		5” X 5”		3” X 5”
Curing Box Adjustable Heights (optional purchase)		1.75”, 3.5”, 5.25”, 7.0”, 9.0”								Not Applicable		Not Applicable
Temperature Management		Forced Air with Standby Mode
Power Input		100-240V, 50/60Hz, Auto-Ranging
External Control Port		None				LCD Programmable Interactive Panel				None
Ordering Part Number		F100-1A (UVA) F100-1B (UVB) F100-1C (UVC)		F200-1A (UVB) F200-1B (UVB) F200-1C (UVC)		F200P-1A (UVA) F200P-1B (UVB) F200P-1C (UVC)		F900P-1A (UVA) F900P-1B (UVB) F900P-1C (UVC)		F400-1A (UVA) F400-1B (UVB) F400-1C (UVC)		F500-1A (UVA) F500-1B (UVB) F500-1C (UVC)
Irradiator Dimension / Weight		11” x 10” x 9” (11 lb)		11” x 10” x 9” (11 lb)		11” x 10” x 9” (13 lb)		17.5” x 23” x 7.8” (26.8 lb)		8” x 5” x 6” (3.25 lb)		8” x 5” x 6” (3.25 lb)
Controller Dimension / Weight
Curing Drawer / Box (Optional Purchase, Unless Specified)		B500		B500		B500		B201		Included in Full Complete Set Only
Curing Drawer / Box Dimension		12” x 12” x 12”		12” x 12” x 12”		12” x 12” x 12”		20” x 24” x 14”		8” x 5” x 2.6”		8” x 5” x 2.6”
Interlock Safety Feature		Integrated When Mounted on B300 Curing Box								Standby / Full Power On Mode
C9000 ^TM Conveyor Mounting		Yes						Not Applicable		Yes
