MEDICAL

UV LIGHT CURABLE ADHESIVES OR MEDICAL DEVICE ASSEMBLY MANUFACTURING ASSEMBLY

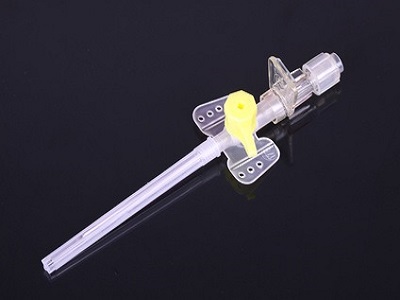

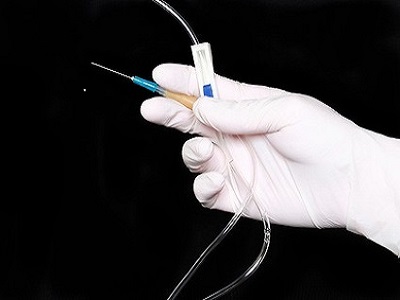

Incure offers a wide range of UV/Visible/LED light-curing adhesives for medical disposables and medical device assemblies. Incure Cyro-Weld™ Series are formulated to provide bonding, coating, sealing, potting and encapsulation of devices such as disposable needles and syringes, face-masks, tube-sets, catheters, reservoirs and housings, oxygenators, respiratory and many other medical disposable devices.

Incure continues invest in research and development of advanced formulations for continual improvements in properties for critical applications. Unique properties include high precision active alignment, low surface energy plastics, ultra-low shrinkage, ultra-fast curing, shadowed areas in UV curing, fluorescing and color-change, low-energy curing, sleek surfaces with extra-ordinary bonding strengths.

All Cyro-Weld™ products are designed to withstand different test requirements, such as thermal cycling under vibration or environmental exposure, EtO, gamma and E-beam sterilisation. Formulated to pass the medical industry’s most comprehensive USP Class IV and ISO 10993 biocompatibility standards.

Fill in your Medical Application Profile Here



Advantages of Optik^TM - Optical Adhesives

  100% Solids
  UV/Visible Cure In Seconds
  One Component, No Mixing

Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
F500 Portable UV Curing Lamps
L9000 Compact UV LED Spot Curing Lamps
S10 / S20 Ultra High Intensity Light-Curing Spot Lamps

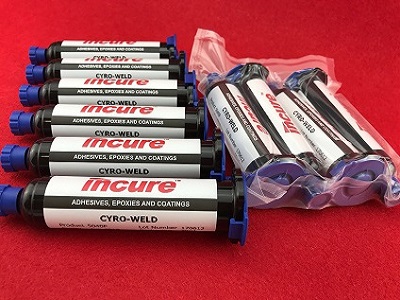

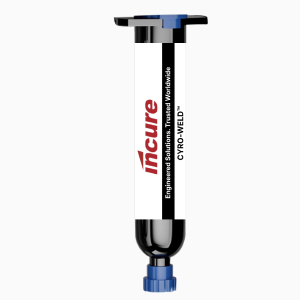

Cyro-WeldTM Series Core Products
Product	Product Highlights	Substrates	Color	Viscosity	Tensile	Hardness	Elongation
5040F	Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Fluoresces for quality inspection.	Multi-Substrates  (Plastics)	Slight Yellowish Tint, Fluorescing	80 – 180 cP	3,200 – 6,900 psi	D80 - D90	1%
5021F	Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Formulated to meet ISO 10993-5. Passes EtO & gamma sterilization.	Multi-Substrates  (High Strength Plastics)	Clear	100 – 200 cP	4,200 – 7,000 psi	D68 - D78	82%
5291	Low viscosity, multi-substrate bonder for most plastics, metal and glass. Ideal for needle / reservoir / catheter / transducer assemblies in the medical industry. Formulated to meet ISO 10993-5. Passes EtO & gamma sterilization.	Multi-Substrates  (High Strength Plastics)	Slight Tint	150 – 300 cP	4,200 – 7,100 psi	D72 - D82	92%
5942	Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity.	Multi-Substrates  (High Strength Plastics)	Clear	200 – 400 cP	5,000 – 6,800 psi	D63 – D73	6%
5942F	Medical grade, low viscosity bonder for respiratory face masks and needle-bonding. Bonds to plastics, glass and metals. Bonding of dissimilar substrates with varying elasticity. Fluoresces for quality inspection.	Multi-Substrates  (High Strength Plastics)	Clear	200 – 400 cP	4,500 – 6,800 psi	D63 – D73	6%
5952	Low viscosity, acid-free, multi-substrate / plastic medical bonder. Good bonding strength on multiple substrates such as metals, glass and FR4 materials on a single application.	Multi-Substrates  (High Strength Plastics)	Clear	300 – 600 cP	4,300 – 7,000 psi	D60 – D70	326%
5454	Medium viscosity, high-strength medical grade PC / TPE bonder with enhanced temperature and moisture resistance. Formulated to meet ISO 10993-5.	Multi-Substrates  (Plastics)	Slight Yellowish Tint, Clear	1,000 – 2,000 cP	1,600 – 6,500 psi	D25 – D35	230%
5414	Low viscosity, acid-free FIPG / CIPG gasket and sealant for medical devices. Very low linear shrinkage. Ideal for medical optics positioning / alignment application. Adhere well to glass / metals / ceramics / plastics.	Multi-Substrates  (High Strength Plastics)	Slight Yellowish Tint, Clear	2,000 – 3,500 cP	3,300 – 7,100 psi	D68 - D78	73%
5005	High-strength multi-substrate bonder. For medical devices with demanding applications. Offers adaptability, strength and rapid cure. Tough-yet-flexible material with high reliability. Passes EtO and gamma sterilisation.	High Strength Plastics	Clear  Transparent	3,500 – 5,500 cP	3,200 – 6,900 psi	D51 – D61	812%
5302	Medical grade, low viscosity multi-substrate bonder.  Good passive vibration isolation capability and extremely low shrinkage.  Suitable for use as a sealant and gasket material.	Multi-Substrates	Clear	200– 500 cP	3,100 – 3,800 psi	D15– D25	812%
5303FT	Manufacture of gel-pads for silicon wafers and laminates. High-tack feel on the surface. Low water absorption and shrinkage properties. Transparent and fluorescing to aid inspection. 100% solids, contains no volatiles.	Multi-Substrates  (High Strength Plastics)	Transparent, Fluorescing	5,000 – 9,000 cP	1,000 – 2,200 psi	A7 – A17	737%
Above products are available in other Viscosities versions: T (Thick), VT (Very Thick), G (Gel), S (Special Viscosity)
Package Size: 10 ml syringe / 30 ml syringe / 1 kg Bottle
