S20

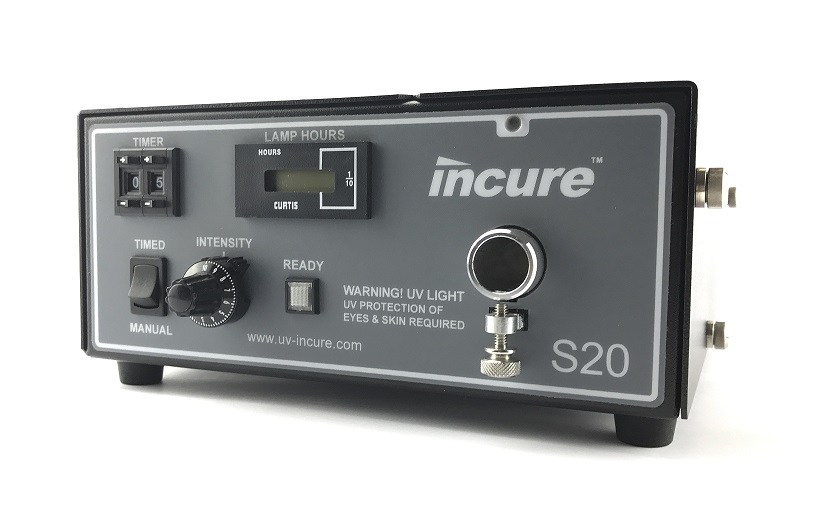

S20 ULTRA HIGH INTENSITY UV LIGHT-CURING SPOT LAMP

The S20 is a new generation ultra high intensity compact UV light curing system that emits up to 23W/cm2 of intensity at the tip of the light-guide (and 27W/cm2 at light source). The adjustable knob allows varying intensities to suit your application needs. With a guaranteed useful life of 2,000 hrs, Incure S20 provides the best value per mW/cm2 in its class. The system weighs a mere 6 pounds, and its 4 x 8.5 x 10.5 inch size is the smallest in its class.
Features of S20TM - High Intensity UV Lamp

  Ultra High Intensity
  Accurate 1 to 99 second
  Constant Lamp Power
  Compact
  Safety Interlock

Learn about our Light Curing Systems

C9000 / U8000 UV Light Curing Conveyor Systems
F100P / F200P Programmable UV Flood Curing Lamps
F500 Portable UV Curing Lamps
L1000 High Intensity UV LED Flood Lamps
L9000 Compact UV LED Spot Curing Lamps
Configuration S20
Order Number                 290029                                                                                                 290028
AC Input Voltage         100-120VAC ± 10%                                                                             200-240VAC ± 10%
AC Input Current             4.7 Amperes                                                                                          2.5 Amperes
Source Input Frequency 47 Hz to 63 Hz
Lamp Power Regulation ± 1.0%
Fan / Auxiliary Voltage 24V@0.5A
Lamp Type 200 Watt mercury
Burning Position Horizontal
Radiation Flux 275 - 650 nm
Warm-up Time 1 to 2 minutes
Cooling time before Restart 2 to 5 minutes typical
Output Intensity (typical) >21W/cm2
Output Intensity Range 25-100% combined

Lamp Life

>2000 hours typical

Operating Temperature

+10°C to +40°C

+50°F to +104°F

Relative Humidity 30 to 75% operating, 10 to 100% storage
Cooling Dual DC fans, filtered
Over-temp shutdown 65 °C (internal)
L x W x H (inches) 10.51” x 8.64” x 4.05”
Weight (lbs.) 5.92 Pounds
Download: Bulletin for S20 UV Light Curing System (126 KB)
Please click here to refer UV spot lamp selector guide
